Feature:
1. MAIN FUNCTION: Mainly used to distribute electrical energy and protect circuits from damage caused by faults such as overload, short circuit, undervoltage, etc.
2. PLASTIC HOUSING: This circuit breaker is made of thermosetting material with good flame retardancy, suitable for environments in ?20?60 celsius , safe and reliable.
3. ADVANTAGES: With the advantages of small size, short circuit and overload protection, good flame retardancy, high breaking capacity, and short flashover.
4. WORK PARAMETER: The DC circuit breaker is 4P design with a rated voltage of DC 1000V, a rated current of 250A, and has a high breaking capacity of 10KA.
5. SILVER CONTACTS: The 4P circuit breaker uses 30percent silver alloy contacts, which have good conductivity and sensitive response, greatly improving electrical efficiency.
Specification:
Item Type: Circuit Breaker
Model: ZYM1 250L 4300
Material: Thermosetting Plastic, Silver Alloy
Contact: Contains 30percent Silver Alloy Contact
Rated Current: 250A
Rated Voltage (Ue): DC 1000V
Breaking Capacity: 10KA
Rated Instantaneous Short Circuit Current Setting Value Li: 10Ln+40 celsius
Recommended Installation Method (4P): Vertical, top in and bottom out wiring
Rated Impulse Withstand Voltage (Uimp): 1000V
Ics=75percent Icu.

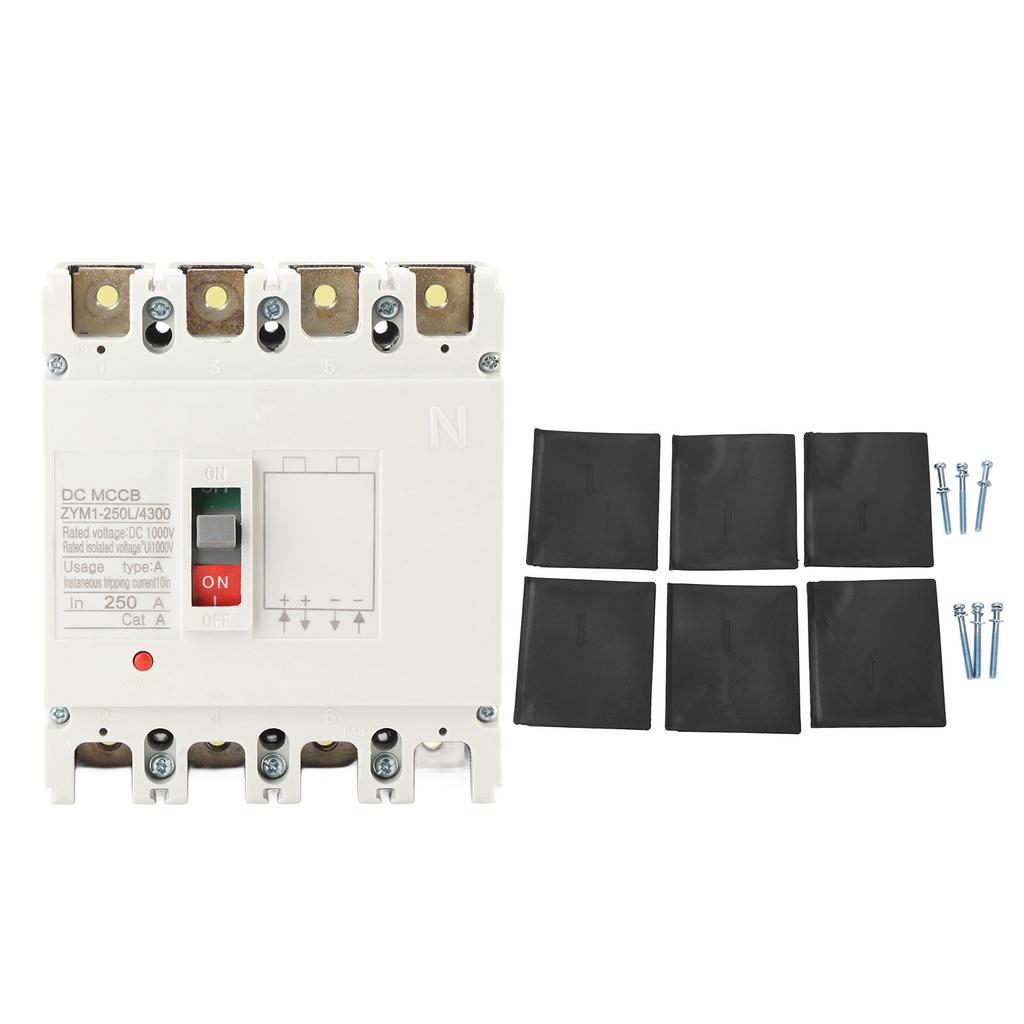

Package List:
1 x Circuit Breaker6 x Mounting Screws6 x AccessoriesMAIN FUNCTION: Mainly used to distribute electrical energy and protect circuits from damage caused by faults such as overload, short circuit, undervoltage, etc.
PLASTIC HOUSING: This circuit breaker is made of thermosetting material with good flame retardancy, suitable for environments in ?20?60 celsius , safe and reliable.
ADVANTAGES: With the advantages of small size, short circuit and overload protection, good flame retardancy, high breaking capacity, and short flashover.
WORK PARAMETER: The DC circuit breaker is 4P design with a rated voltage of DC 1000V, a rated current of 250A, and has a high breaking capacity of 10KA.
SILVER CONTACTS: The 4P circuit breaker uses 30percent silver alloy contacts, which have good conductivity and sensitive response, greatly improving electrical efficiency.
